Description

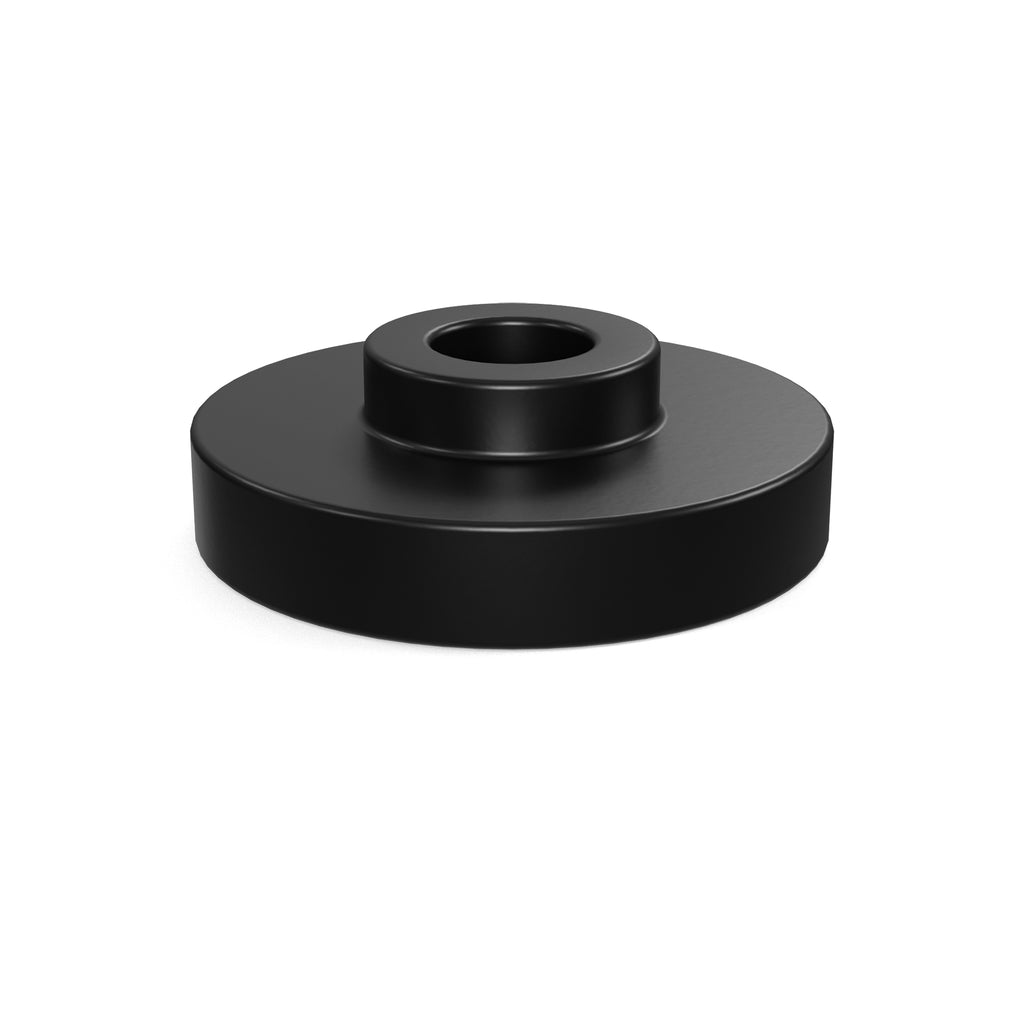

Sorbothane vibration isolators are versatile spacers that can be used as feet, stops and protectors in many applications. The unique Sorbothane urethane is a durable, resilient, polymer that provides outstanding vibration isolation and non-skid properties. Sorbothane isolators help absorb impact and noise and have excellent resistance to aging; they will not harden or crack over time. They feature a smooth, clean, black raw Sorbothane surface.

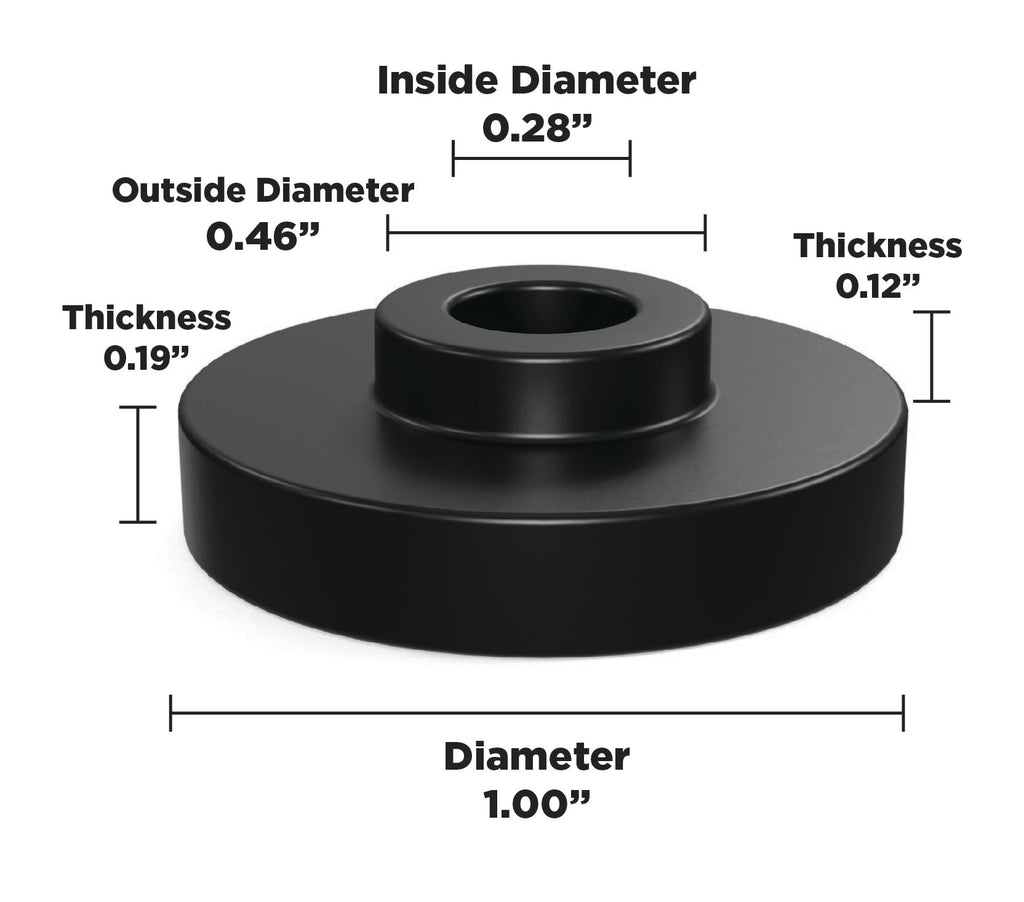

Note on how our part numbers work:Using the part number 0510005-30-10 for the 0.28" ID 1" OD 0.31" deep Isolation Bushing as an example, the first part, 0510005, corresponds to the product and differs based on the measurements and product type. The middle part, 30, refers to the durometer. The end, 10, is used by our manufacturer and means that the product's color is black. All IsolateIT products are black, so IsolateIT part numbers do not end in 10. Instead the end of the part number refers to the quantity, such as 4 for a 4-pack.

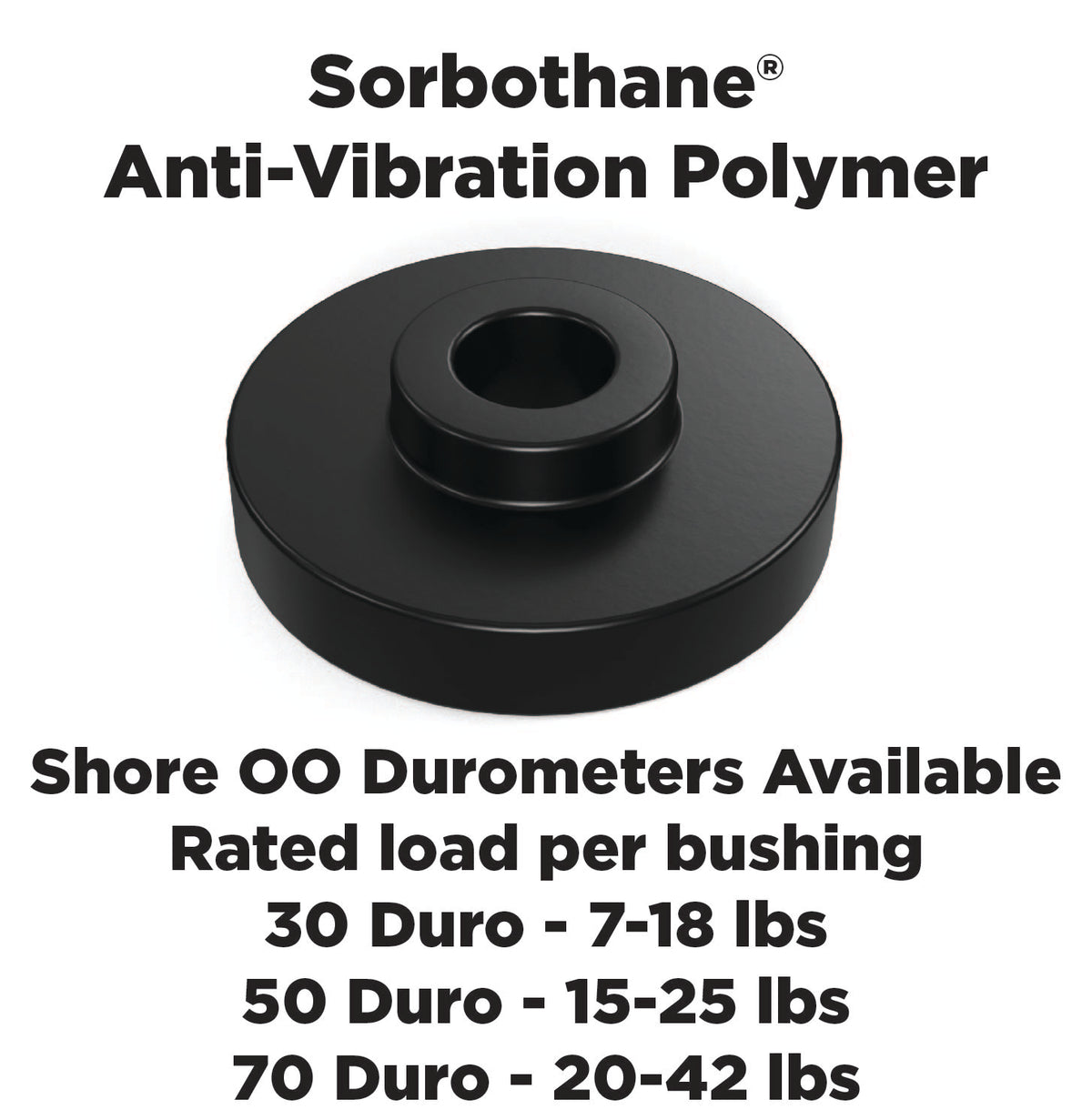

Part Number | Duro / Durometer | Total Diameter | Shank Diameter | Thickness minus shank | Inside / Opening Diameter | Total thickness including shank | Rated Load Per bushing | # of unit per pack |
---|---|---|---|---|---|---|---|---|
0510005-30-10 | 30 | 1” | 0.46” | 0.19” | 0.28” | 0.31” | 2-4lbs | 12 |
0510005-50-10 | 50 | 1” | 0.46” | 0.19” | 0.28” | 0.31” | 5-12lbs | 12 |
0510005-70-10 | 70 | 1” | 0.46” | 0.19” | 0.28” | 0.31” | 24-60lbs | 12 |
